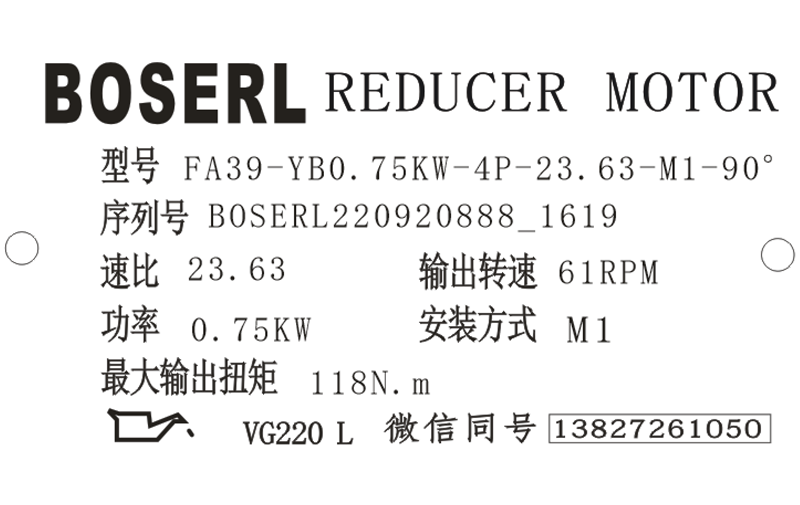

FA39減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA39減速器選型樣本。

FA39-YB0.75KW-4P-23.63-M1-90°

FA：系列代號

39：減速機規格代號

YB：電機

0.75KW：電機功率

4P：電機級數

23.63：減速機傳動比

M1：減速機安裝位置

90°：接線盒位置

FA39減速器逆止器安裝：

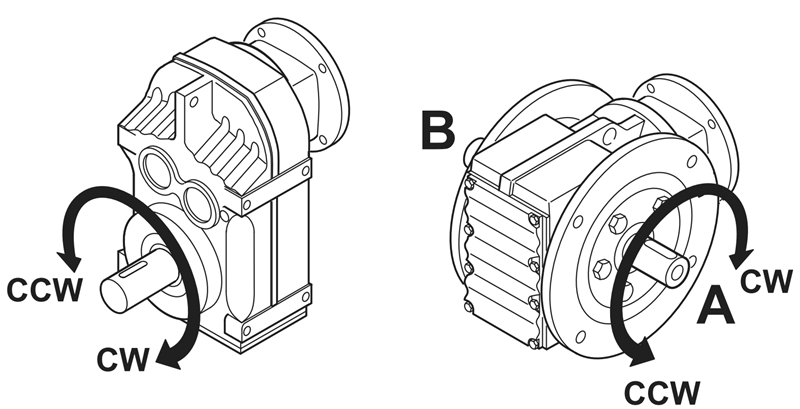

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA39減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

FA39減速器潤滑油檢查：

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA39減速器型號：

YQFA37-Y0.12KW，YQFA37-Y0.18KW，YQFA37-Y0.25KW，YQFA37-Y0.37KW，YQFA37-Y0.55KW，YQFA37-Y0.75KW，YQFA37-Y1.1KW，YQFA37-Y1.5KW，YQFA37-Y100M4，YQFA37-Y2.2KW，YQFA37-Y3KW，YQFA37-Y63M4，YQFA37-Y71M4，YQFA37-Y80M4，YQFA37-Y90M4，YQFA37-YB100M4，YQFA37-YB63M4，YQFA37-YB71M4，YQFA37-YB80M4，YQFA37-YB90M4，YQFA37-YDP100M4，YQFA37-YDP63M4，YQFA37-YDP71M4，YQFA37-YDP80M4，YQFA37-YDP90M4，YQFA37-YE100M4，YQFA37-YE63M4，YQFA37-YE71M4，YQFA37-YE80M4，YQFA37-YE90M4，YQFA37-YEJ100M4，YQFA37-YEJ63M4，YQFA37-YEJ71M4，YQFA37-YEJ80M4，YQFA37-YEJ90M4，YQFA37-YEJB100M4，YQFA37-YEJB63M4，YQFA37-YEJB71M4，YQFA37-YEJB80M4，YQFA37-YEJB90M4，YQFA37-YP100M4，YQFA37-YP63M4，YQFA37-YP71M4，YQFA37-YP80M4，YQFA37-YP90M4，YQFA37-YPB100M4，YQFA37-YPB63M4，YQFA37-YPB71M4，YQFA37-YPB80M4，YQFA37-YPB90M4，YQFA37-YPE100M4，YQFA37-YPE63M4，YQFA37-YPE71M4，YQFA37-YPE80M4，YQFA37-YPE90M4，YQFA37-YS100M4，YQFA37-YS63M4，YQFA37-YS71M4，YQFA37-YS80M4，YQFA37-YS90M4，YQFA37-YVB100M4，YQFA37-YVB63M4，YQFA37-YVB71M4，YQFA37-YVB80M4，YQFA37-YVB90M4，YQFA37-YVP100M4，YQFA37-YVP63M4，YQFA37-YVP71M4，YQFA37-YVP80M4，YQFA37-YVP90M4，YQFA37-YVPEJ100M4，YQFA37-YVPEJ63M4，YQFA37-YVPEJ71M4，YQFA37-YVPEJ80M4，YQFA37-YVPEJ90M4，XDFA37-Y0.12KW，XDFA37-Y0.18KW，XDFA37-Y0.25KW，XDFA37-Y0.37KW，XDFA37-Y0.55KW，XDFA37-Y0.75KW，XDFA37-Y1.1KW，XDFA37-Y1.5KW，XDFA37-Y100M4，XDFA37-Y2.2KW，XDFA37-Y3KW，XDFA37-Y63M4，XDFA37-Y71M4，XDFA37-Y80M4，XDFA37-Y90M4，XDFA37-YB100M4，XDFA37-YB63M4，XDFA37-YB71M4，XDFA37-YB80M4，XDFA37-YB90M4，XDFA37-YDP100M4，XDFA37-YDP63M4，XDFA37-YDP71M4，XDFA37-YDP80M4，XDFA37-YDP90M4，XDFA37-YE100M4，XDFA37-YE63M4，XDFA37-YE71M4，XDFA37-YE80M4，XDFA37-YE90M4，XDFA37-YEJ100M4，XDFA37-YEJ63M4，XDFA37-YEJ71M4，XDFA37-YEJ80M4，XDFA37-YEJ90M4，XDFA37-YEJB100M4，XDFA37-YEJB63M4，XDFA37-YEJB71M4，XDFA37-YEJB80M4，XDFA37-YEJB90M4，XDFA37-YP100M4，XDFA37-YP63M4，XDFA37-YP71M4，XDFA37-YP80M4，XDFA37-YP90M4，XDFA37-YPB100M4，XDFA37-YPB63M4，XDFA37-YPB71M4，XDFA37-YPB80M4，XDFA37-YPB90M4，XDFA37-YPE100M4，XDFA37-YPE63M4，XDFA37-YPE71M4，XDFA37-YPE80M4，XDFA37-YPE90M4，XDFA37-YS100M4，XDFA37-YS63M4，XDFA37-YS71M4，XDFA37-YS80M4，XDFA37-YS90M4，XDFA37-YVB100M4，XDFA37-YVB63M4，XDFA37-YVB71M4，XDFA37-YVB80M4，XDFA37-YVB90M4，XDFA37-YVP100M4，XDFA37-YVP63M4，XDFA37-YVP71M4，XDFA37-YVP80M4，XDFA37-YVP90M4，XDFA37-YVPEJ100M4，XDFA37-YVPEJ63M4，XDFA37-YVPEJ71M4，XDFA37-YVPEJ80M4，XDFA37-YVPEJ90M4，JCFA37-Y0.12KW，JCFA37-Y0.18KW，JCFA37-Y0.25KW，JCFA37-Y0.37KW，JCFA37-Y0.55KW，JCFA37-Y0.75KW，JCFA37-Y1.1KW，JCFA37-Y1.5KW，JCFA37-Y100M4，JCFA37-Y2.2KW，JCFA37-Y3KW，JCFA37-Y63M4，JCFA37-Y71M4，JCFA37-Y80M4，JCFA37-Y90M4，JCFA37-YB100M4，JCFA37-YB63M4，JCFA37-YB71M4，JCFA37-YB80M4，JCFA37-YB90M4，JCFA37-YDP100M4，JCFA37-YDP63M4，JCFA37-YDP71M4，JCFA37-YDP80M4，JCFA37-YDP90M4，JCFA37-YE100M4，JCFA37-YE63M4，JCFA37-YE71M4，JCFA37-YE80M4，JCFA37-YE90M4，JCFA37-YEJ100M4，JCFA37-YEJ63M4，JCFA37-YEJ71M4，JCFA37-YEJ80M4，JCFA37-YEJ90M4，JCFA37-YEJB100M4，JCFA37-YEJB63M4，JCFA37-YEJB71M4，JCFA37-YEJB80M4，JCFA37-YEJB90M4，JCFA37-YP100M4，JCFA37-YP63M4，JCFA37-YP71M4，JCFA37-YP80M4，JCFA37-YP90M4，JCFA37-YPB100M4，JCFA37-YPB63M4，JCFA37-YPB71M4，JCFA37-YPB80M4，JCFA37-YPB90M4，JCFA37-YPE100M4，JCFA37-YPE63M4，JCFA37-YPE71M4，JCFA37-YPE80M4，JCFA37-YPE90M4，JCFA37-YS100M4，JCFA37-YS63M4，JCFA37-YS71M4，JCFA37-YS80M4，JCFA37-YS90M4，JCFA37-YVB100M4，JCFA37-YVB63M4，JCFA37-YVB71M4，JCFA37-YVB80M4，JCFA37-YVB90M4，JCFA37-YVP100M4，JCFA37-YVP63M4，JCFA37-YVP71M4，JCFA37-YVP80M4，JCFA37-YVP90M4，JCFA37-YVPEJ100M4，JCFA37-YVPEJ63M4，JCFA37-YVPEJ71M4，JCFA37-YVPEJ80M4，JCFA37-YVPEJ90M4，FWA37-Y0.12KW，FWA37-Y0.18KW，FWA37-Y0.25KW，FWA37-Y0.37KW，FWA37-Y0.55KW，FWA37-Y0.75KW，FWA37-Y1.1KW，FWA37-Y1.5KW，FWA37-Y100M4，FWA37-Y2.2KW，FWA37-Y3KW，FWA37-Y63M4，FWA37-Y71M4，FWA37-Y80M4，FWA37-Y90M4，FWA37-YB100M4，FWA37-YB63M4，FWA37-YB71M4，FWA37-YB80M4，FWA37-YB90M4，FWA37-YDP100M4，FWA37-YDP63M4，FWA37-YDP71M4，FWA37-YDP80M4，FWA37-YDP90M4，FWA37-YE100M4，FWA37-YE63M4，FWA37-YE71M4，FWA37-YE80M4，FWA37-YE90M4，FWA37-YEJ100M4，FWA37-YEJ63M4，FWA37-YEJ71M4，FWA37-YEJ80M4，FWA37-YEJ90M4，FWA37-YEJB100M4，FWA37-YEJB63M4，FWA37-YEJB71M4，FWA37-YEJB80M4，FWA37-YEJB90M4，FWA37-YP100M4，FWA37-YP63M4，FWA37-YP71M4，FWA37-YP80M4，FWA37-YP90M4，FWA37-YPB100M4，FWA37-YPB63M4，FWA37-YPB71M4，FWA37-YPB80M4，FWA37-YPB90M4，FWA37-YPE100M4，FWA37-YPE63M4，FWA37-YPE71M4，FWA37-YPE80M4，FWA37-YPE90M4，FWA37-YS100M4，FWA37-YS63M4，FWA37-YS71M4，FWA37-YS80M4，FWA37-YS90M4，FWA37-YVB100M4，FWA37-YVB63M4，FWA37-YVB71M4，FWA37-YVB80M4，FWA37-YVB90M4，FWA37-YVP100M4，FWA37-YVP63M4，FWA37-YVP71M4，FWA37-YVP80M4，FWA37-YVP90M4，FWA37-YVPEJ100M4，FWA37-YVPEJ63M4，FWA37-YVPEJ71M4，FWA37-YVPEJ80M4，FWA37-YVPEJ90M4，FA39-Y0.12KW，FA39-Y0.18KW，FA39-Y0.25KW，FA39-Y0.37KW，FA39-Y0.55KW，FA39-Y0.75KW，FA39-Y1.1KW，FA39-Y1.5KW，FA39-Y100M4，FA39-Y2.2KW，FA39-Y3KW，FA39-Y63M4，FA39-Y71M4，FA39-Y80M4，FA39-Y90M4，FA39-YB100M4，FA39-YB63M4，FA39-YB71M4，FA39-YB80M4，FA39-YB90M4，FA39-YDP100M4，FA39-YDP63M4，FA39-YDP71M4，FA39-YDP80M4，FA39-YDP90M4，FA39-YE100M4，FA39-YE63M4，FA39-YE71M4，FA39-YE80M4，FA39-YE90M4，FA39-YEJ100M4，FA39-YEJ63M4，FA39-YEJ71M4，FA39-YEJ80M4，FA39-YEJ90M4，FA39-YEJB100M4，FA39-YEJB63M4，FA39-YEJB71M4，FA39-YEJB80M4，FA39-YEJB90M4，FA39-YP100M4，FA39-YP63M4，FA39-YP71M4，FA39-YP80M4，FA39-YP90M4，FA39-YPB100M4，FA39-YPB63M4，FA39-YPB71M4，FA39-YPB80M4，FA39-YPB90M4，FA39-YPE100M4，FA39-YPE63M4，FA39-YPE71M4，FA39-YPE80M4，FA39-YPE90M4，FA39-YS100M4，FA39-YS63M4，FA39-YS71M4，FA39-YS80M4，FA39-YS90M4，FA39-YVB100M4，FA39-YVB63M4，FA39-YVB71M4，FA39-YVB80M4，FA39-YVB90M4，FA39-YVP100M4，FA39-YVP63M4，FA39-YVP71M4，FA39-YVP80M4，FA39-YVP90M4，FA39-YVPEJ100M4，FA39-YVPEJ63M4，FA39-YVPEJ71M4，FA39-YVPEJ80M4，FA39-YVPEJ90M4，FA37SF80，FA37SF90，FA37SF100，FA37SF112，FA37SF115，FA37SF140，FA37SF160，FA37SF190。

FA39減速器生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jiohu.cn/product/list-faxiliejiansuji-cn.html

推薦類似型號：F39減速機
