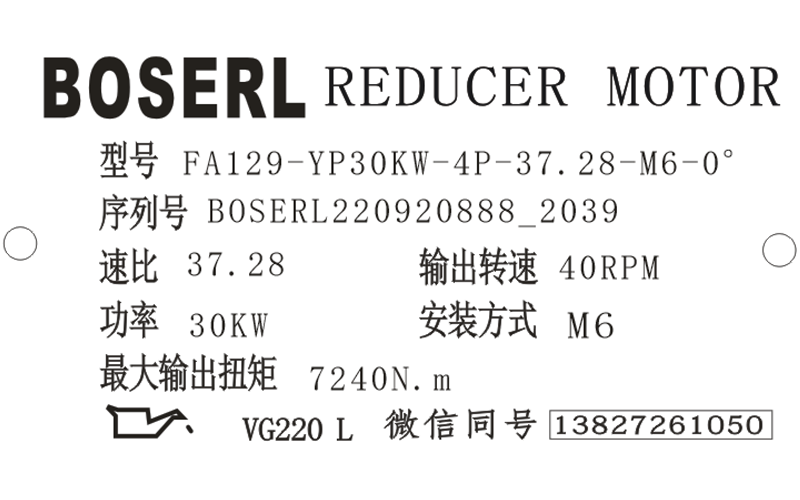

FA129減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F129減速機選型樣本。

FA129-YP30KW-4P-37.28-M6-0°

FA：系列代號

129：減速機規格代號

YP：電機

30KW：電機功率

4P：電機級數

37.28：減速機傳動比

M6：減速機安裝位置

0°：接線盒位置

FA129減速機扭力臂安裝：

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA129減速機的扭力臂安裝示意圖：齒輪減速電機

FA129減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA129減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機

FA129減速機型號：

WFA127-Y11KW，WFA127-Y132M4，WFA127-Y15KW，WFA127-Y160M4，WFA127-Y18.5KW，WFA127-Y180M4，WFA127-Y200M4，WFA127-Y225M4，WFA127-Y22KW，WFA127-Y250M4，WFA127-Y280M4，WFA127-Y30KW，WFA127-Y37KW，WFA127-Y45KW，WFA127-Y55KW，WFA127-Y7.5KW，WFA127-Y75KW，WFA127-Y90KW，WFA127-YB132M4，WFA127-YB160M4，WFA127-YB180M4，WFA127-YB200M4，WFA127-YB225M4，WFA127-YB250M4，WFA127-YB280M4，WFA127-YDP132M4，WFA127-YDP160M4，WFA127-YDP180M4，WFA127-YDP200M4，WFA127-YDP225M4，WFA127-YDP250M4，WFA127-YDP280M4，WFA127-YE132M4，WFA127-YE160M4，WFA127-YE180M4，WFA127-YE200M4，WFA127-YE225M4，WFA127-YE250M4，WFA127-YE280M4，WFA127-YEJ132M4，WFA127-YEJ160M4，WFA127-YEJ180M4，WFA127-YEJ200M4，WFA127-YEJ225M4，WFA127-YEJ250M4，WFA127-YEJ280M4，WFA127-YEJB132M4，WFA127-YEJB160M4，WFA127-YEJB180M4，WFA127-YEJB200M4，WFA127-YEJB225M4，WFA127-YEJB250M4，WFA127-YEJB280M4，WFA127-YP132M4，WFA127-YP160M4，WFA127-YP180M4，WFA127-YP200M4，WFA127-YP225M4，WFA127-YP250M4，WFA127-YP280M4，WFA127-YPB132M4，WFA127-YPB160M4，WFA127-YPB180M4，WFA127-YPB200M4，WFA127-YPB225M4，WFA127-YPB250M4，WFA127-YPB280M4，WFA127-YPE132M4，WFA127-YPE160M4，WFA127-YPE180M4，WFA127-YPE200M4，WFA127-YPE225M4，WFA127-YPE250M4，WFA127-YPE280M4，WFA127-YS132M4，WFA127-YS160M4，WFA127-YS180M4，WFA127-YS200M4，WFA127-YS225M4，WFA127-YS250M4，WFA127-YS280M4，WFA127-YVB132M4，WFA127-YVB160M4，WFA127-YVB180M4，WFA127-YVB200M4，WFA127-YVB225M4，WFA127-YVB250M4，WFA127-YVB280M4，WFA127-YVP132M4，WFA127-YVP160M4，WFA127-YVP180M4，WFA127-YVP200M4，WFA127-YVP225M4，WFA127-YVP250M4，WFA127-YVP280M4，WFA127-YVPEJ132M4，WFA127-YVPEJ160M4，WFA127-YVPEJ180M4，WFA127-YVPEJ200M4，WFA127-YVPEJ225M4，WFA127-YVPEJ250M4，WFA127-YVPEJ280M4，SFA127-Y11KW，SFA127-Y132M4，SFA127-Y15KW，SFA127-Y160M4，SFA127-Y18.5KW，SFA127-Y180M4，SFA127-Y200M4，SFA127-Y225M4，SFA127-Y22KW，SFA127-Y250M4，SFA127-Y280M4，SFA127-Y30KW，SFA127-Y37KW，SFA127-Y45KW，SFA127-Y55KW，SFA127-Y7.5KW，SFA127-Y75KW，SFA127-Y90KW，SFA127-YB132M4，SFA127-YB160M4，SFA127-YB180M4，SFA127-YB200M4，SFA127-YB225M4，SFA127-YB250M4，SFA127-YB280M4，SFA127-YDP132M4，SFA127-YDP160M4，SFA127-YDP180M4，SFA127-YDP200M4，SFA127-YDP225M4，SFA127-YDP250M4，SFA127-YDP280M4，SFA127-YE132M4，SFA127-YE160M4，SFA127-YE180M4，SFA127-YE200M4，SFA127-YE225M4，SFA127-YE250M4，SFA127-YE280M4，SFA127-YEJ132M4，SFA127-YEJ160M4，SFA127-YEJ180M4，SFA127-YEJ200M4，SFA127-YEJ225M4，SFA127-YEJ250M4，SFA127-YEJ280M4，SFA127-YEJB132M4，SFA127-YEJB160M4，SFA127-YEJB180M4，SFA127-YEJB200M4，SFA127-YEJB225M4，SFA127-YEJB250M4，SFA127-YEJB280M4，SFA127-YP132M4，SFA127-YP160M4，SFA127-YP180M4，SFA127-YP200M4，SFA127-YP225M4，SFA127-YP250M4，SFA127-YP280M4，SFA127-YPB132M4，SFA127-YPB160M4，SFA127-YPB180M4，SFA127-YPB200M4，SFA127-YPB225M4，SFA127-YPB250M4，SFA127-YPB280M4，SFA127-YPE132M4，SFA127-YPE160M4，SFA127-YPE180M4，SFA127-YPE200M4，SFA127-YPE225M4，SFA127-YPE250M4，SFA127-YPE280M4，SFA127-YS132M4，SFA127-YS160M4，SFA127-YS180M4，SFA127-YS200M4，SFA127-YS225M4，SFA127-YS250M4，SFA127-YS280M4，SFA127-YVB132M4，SFA127-YVB160M4，SFA127-YVB180M4，SFA127-YVB200M4，SFA127-YVB225M4，SFA127-YVB250M4，SFA127-YVB280M4，SFA127-YVP132M4，SFA127-YVP160M4，SFA127-YVP180M4，SFA127-YVP200M4，SFA127-YVP225M4，SFA127-YVP250M4，SFA127-YVP280M4，SFA127-YVPEJ132M4，SFA127-YVPEJ160M4，SFA127-YVPEJ180M4，SFA127-YVPEJ200M4，SFA127-YVPEJ225M4，SFA127-YVPEJ250M4，SFA127-YVPEJ280M4，NFA127-Y11KW，NFA127-Y132M4，NFA127-Y15KW，NFA127-Y160M4，NFA127-Y18.5KW，NFA127-Y180M4，NFA127-Y200M4，NFA127-Y225M4，NFA127-Y22KW，NFA127-Y250M4，NFA127-Y280M4，NFA127-Y30KW，NFA127-Y37KW，NFA127-Y45KW，NFA127-Y55KW，NFA127-Y7.5KW，NFA127-Y75KW，NFA127-Y90KW，NFA127-YB132M4，NFA127-YB160M4，NFA127-YB180M4，NFA127-YB200M4，NFA127-YB225M4，NFA127-YB250M4，NFA127-YB280M4，NFA127-YDP132M4，NFA127-YDP160M4，NFA127-YDP180M4，NFA127-YDP200M4，NFA127-YDP225M4，NFA127-YDP250M4，NFA127-YDP280M4，NFA127-YE132M4，NFA127-YE160M4，NFA127-YE180M4，NFA127-YE200M4，NFA127-YE225M4，NFA127-YE250M4，NFA127-YE280M4，NFA127-YEJ132M4，NFA127-YEJ160M4，NFA127-YEJ180M4，NFA127-YEJ200M4，NFA127-YEJ225M4，NFA127-YEJ250M4，NFA127-YEJ280M4，NFA127-YEJB132M4，NFA127-YEJB160M4，NFA127-YEJB180M4，NFA127-YEJB200M4，NFA127-YEJB225M4，NFA127-YEJB250M4，NFA127-YEJB280M4，NFA127-YP132M4，NFA127-YP160M4，NFA127-YP180M4，NFA127-YP200M4，NFA127-YP225M4，NFA127-YP250M4，NFA127-YP280M4，NFA127-YPB132M4，NFA127-YPB160M4，NFA127-YPB180M4，NFA127-YPB200M4，NFA127-YPB225M4，NFA127-YPB250M4，NFA127-YPB280M4，NFA127-YPE132M4，NFA127-YPE160M4，NFA127-YPE180M4，NFA127-YPE200M4，NFA127-YPE225M4，NFA127-YPE250M4，NFA127-YPE280M4，NFA127-YS132M4，NFA127-YS160M4，NFA127-YS180M4，NFA127-YS200M4，NFA127-YS225M4，NFA127-YS250M4，NFA127-YS280M4，NFA127-YVB132M4，NFA127-YVB160M4，NFA127-YVB180M4，NFA127-YVB200M4，NFA127-YVB225M4，NFA127-YVB250M4，NFA127-YVB280M4，NFA127-YVP132M4，NFA127-YVP160M4，NFA127-YVP180M4，NFA127-YVP200M4，NFA127-YVP225M4，NFA127-YVP250M4，NFA127-YVP280M4，NFA127-YVPEJ132M4，NFA127-YVPEJ160M4，NFA127-YVPEJ180M4，NFA127-YVPEJ200M4，NFA127-YVPEJ225M4，NFA127-YVPEJ250M4，NFA127-YVPEJ280M4，AFA127-Y11KW，AFA127-Y132M4，AFA127-Y15KW，AFA127-Y160M4，AFA127-Y18.5KW，AFA127-Y180M4，AFA127-Y200M4，AFA127-Y225M4，AFA127-Y22KW，AFA127-Y250M4，AFA127-Y280M4，AFA127-Y30KW，AFA127-Y37KW，AFA127-Y45KW，AFA127-Y55KW，AFA127-Y7.5KW，AFA127-Y75KW，AFA127-Y90KW，AFA127-YB132M4，AFA127-YB160M4，AFA127-YB180M4，AFA127-YB200M4，AFA127-YB225M4，AFA127-YB250M4，AFA127-YB280M4，AFA127-YDP132M4，AFA127-YDP160M4，AFA127-YDP180M4，AFA127-YDP200M4，AFA127-YDP225M4，AFA127-YDP250M4，AFA127-YDP280M4，AFA127-YE132M4，AFA127-YE160M4，AFA127-YE180M4，AFA127-YE200M4，AFA127-YE225M4，AFA127-YE250M4，AFA127-YE280M4，AFA127-YEJ132M4，AFA127-YEJ160M4，AFA127-YEJ180M4，AFA127-YEJ200M4，AFA127-YEJ225M4，AFA127-YEJ250M4，AFA127-YEJ280M4，AFA127-YEJB132M4，AFA127-YEJB160M4，AFA127-YEJB180M4，AFA127-YEJB200M4，AFA127-YEJB225M4，AFA127-YEJB250M4，AFA127-YEJB280M4，AFA127-YP132M4，AFA127-YP160M4，AFA127-YP180M4，AFA127-YP200M4，AFA127-YP225M4，AFA127-YP250M4，AFA127-YP280M4，AFA127-YPB132M4，AFA127-YPB160M4，AFA127-YPB180M4，AFA127-YPB200M4，AFA127-YPB225M4，AFA127-YPB250M4，AFA127-YPB280M4，AFA127-YPE132M4，AFA127-YPE160M4，AFA127-YPE180M4，AFA127-YPE200M4，AFA127-YPE225M4，AFA127-YPE250M4，AFA127-YPE280M4，AFA127-YS132M4，AFA127-YS160M4，AFA127-YS180M4，AFA127-YS200M4，AFA127-YS225M4，AFA127-YS250M4，AFA127-YS280M4，AFA127-YVB132M4，AFA127-YVB160M4，AFA127-YVB180M4，AFA127-YVB200M4，AFA127-YVB225M4，AFA127-YVB250M4，AFA127-YVB280M4，AFA127-YVP132M4，AFA127-YVP160M4，AFA127-YVP180M4，AFA127-YVP200M4，AFA127-YVP225M4，AFA127-YVP250M4，AFA127-YVP280M4，AFA127-YVPEJ132M4，AFA127-YVPEJ160M4，AFA127-YVPEJ180M4，AFA127-YVPEJ200M4，AFA127-YVPEJ225M4，AFA127-YVPEJ250M4，AFA127-YVPEJ280M4，GFA129-Y11KW，GFA129-Y132M4，GFA129-Y15KW，GFA129-Y160M4，GFA129-Y18.5KW，GFA129-Y180M4，GFA129-Y200M4，GFA129-Y225M4，GFA129-Y22KW，GFA129-Y250M4，GFA129-Y280M4，GFA129-Y30KW，GFA129-Y37KW，GFA129-Y45KW，GFA129-Y55KW，GFA129-Y7.5KW，GFA129-Y75KW，GFA129-Y90KW，GFA129-YB132M4，GFA129-YB160M4，GFA129-YB180M4，GFA129-YB200M4，GFA129-YB225M4，GFA129-YB250M4，GFA129-YB280M4，GFA129-YDP132M4，GFA129-YDP160M4，GFA129-YDP180M4，GFA129-YDP200M4，GFA129-YDP225M4，GFA129-YDP250M4，GFA129-YDP280M4，GFA129-YE132M4，GFA129-YE160M4，GFA129-YE180M4，GFA129-YE200M4，GFA129-YE225M4，GFA129-YE250M4，GFA129-YE280M4，GFA129-YEJ132M4，GFA129-YEJ160M4，GFA129-YEJ180M4，GFA129-YEJ200M4，GFA129-YEJ225M4，GFA129-YEJ250M4，GFA129-YEJ280M4，GFA129-YEJB132M4，GFA129-YEJB160M4，GFA129-YEJB180M4，GFA129-YEJB200M4，GFA129-YEJB225M4，GFA129-YEJB250M4，GFA129-YEJB280M4，GFA129-YP132M4，GFA129-YP160M4，GFA129-YP180M4，GFA129-YP200M4，GFA129-YP225M4，GFA129-YP250M4，GFA129-YP280M4，GFA129-YPB132M4，GFA129-YPB160M4，GFA129-YPB180M4，GFA129-YPB200M4，GFA129-YPB225M4，GFA129-YPB250M4，GFA129-YPB280M4，GFA129-YPE132M4，GFA129-YPE160M4，GFA129-YPE180M4，GFA129-YPE200M4，GFA129-YPE225M4，GFA129-YPE250M4，GFA129-YPE280M4，GFA129-YS132M4，GFA129-YS160M4，GFA129-YS180M4，GFA129-YS200M4，GFA129-YS225M4，GFA129-YS250M4，GFA129-YS280M4，GFA129-YVB132M4，GFA129-YVB160M4，GFA129-YVB180M4，GFA129-YVB200M4，GFA129-YVB225M4，GFA129-YVB250M4，GFA129-YVB280M4，GFA129-YVP132M4，GFA129-YVP160M4，GFA129-YVP180M4，GFA129-YVP200M4，GFA129-YVP225M4，GFA129-YVP250M4，GFA129-YVP280M4，GFA129-YVPEJ132M4，GFA129-YVPEJ160M4，GFA129-YVPEJ180M4，GFA129-YVPEJ200M4，GFA129-YVPEJ225M4，GFA129-YVPEJ250M4，GFA129-YVPEJ280M4。

FA129減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jiohu.cn/product/list-faxiliejiansuji-cn.html

推薦類似型號：F129減速機
