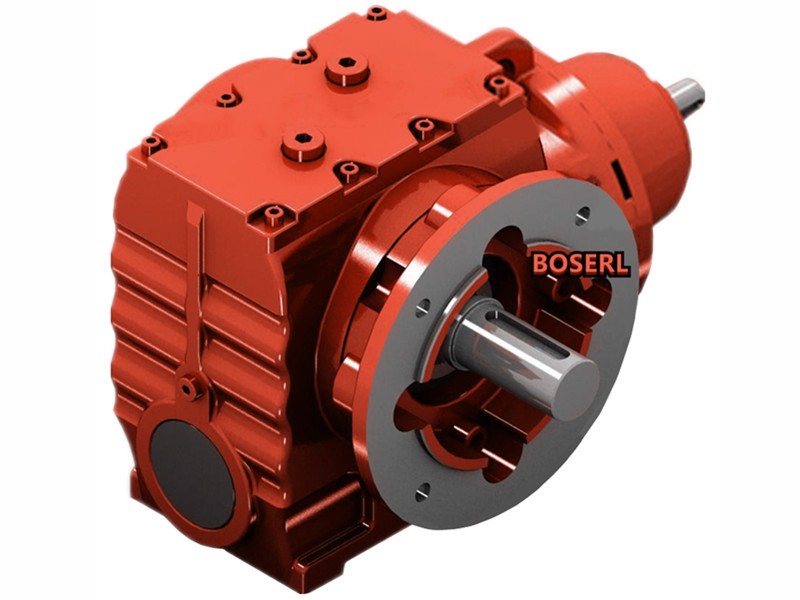

SF99減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF99減速機選型樣本。

SF99-BB5.5KW-4P-116.92-M6-90°

SF：系列代號

99：減速機規格代號

BB：電機

5.5KW：電機功率

4P：電機級數

116.92：減速機傳動比

M6：減速機安裝位置

90°：接線盒位置

SF99減速機潤滑油型號：

SF99減速機推薦使用的潤滑油，其等級和粘度指標見下表：

SF99減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據SF99減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“SF99減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。齒輪減速電機

SF99減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的SF99減速機選型樣本中列出了安裝位置從M1到M6SF99減速機相應的潤滑油加注標準，請自行下載查看。

SF99減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。

SF99減速機使用說明：

SF99減速機注意事項：若未注入正確的SF99減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。伺服電機蝸輪蝸桿減速機

SF99減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見SF99減速機說明書安裝位置章節中的內容。

SF99減速機的螺母：立式安裝SF99減速機輸出法蘭螺母規格M16；SF99減速機螺母/螺母擰緊扭矩強度等級10.9。

SF99減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

SF99減速機警告說明：由于SF99減速機發熱或SF99減速機油溫過高可能引起燙傷；對SF99減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。自鎖減速機

SF99減速機型號：

XDSF97-Y1.1KW，XDSF97-Y1.5KW，XDSF97-Y100M4，XDSF97-Y112M4，XDSF97-Y11KW，XDSF97-Y132M4，XDSF97-Y15KW，XDSF97-Y160M4，XDSF97-Y18.5KW，XDSF97-Y180M4，XDSF97-Y2.2KW，XDSF97-Y200M4，XDSF97-Y22KW，XDSF97-Y3KW，XDSF97-Y4KW，XDSF97-Y5.5KW，XDSF97-Y7.5KW，XDSF97-Y80M4，XDSF97-Y90M4，XDSF97-YB100M4，XDSF97-YB112M4，XDSF97-YB132M4，XDSF97-YB160M4，XDSF97-YB180M4，XDSF97-YB200M4，XDSF97-YB80M4，XDSF97-YB90M4，XDSF97-YDP100M4，XDSF97-YDP112M4，XDSF97-YDP132M4，XDSF97-YDP160M4，XDSF97-YDP180M4，XDSF97-YDP200M4，XDSF97-YDP80M4，XDSF97-YDP90M4，XDSF97-YE100M4，XDSF97-YE112M4，XDSF97-YE132M4，XDSF97-YE160M4，XDSF97-YE180M4，XDSF97-YE200M4，XDSF97-YE80M4，XDSF97-YE90M4，XDSF97-YEJ100M4，XDSF97-YEJ112M4，XDSF97-YEJ132M4，XDSF97-YEJ160M4，XDSF97-YEJ180M4，XDSF97-YEJ200M4，XDSF97-YEJ80M4，XDSF97-YEJ90M4，XDSF97-YEJB100M4，XDSF97-YEJB112M4，XDSF97-YEJB132M4，XDSF97-YEJB160M4，XDSF97-YEJB180M4，XDSF97-YEJB200M4，XDSF97-YEJB80M4，XDSF97-YEJB90M4，XDSF97-YP100M4，XDSF97-YP112M4，XDSF97-YP132M4，XDSF97-YP160M4，XDSF97-YP180M4，XDSF97-YP200M4，XDSF97-YP80M4，XDSF97-YP90M4，XDSF97-YPB100M4，XDSF97-YPB112M4，XDSF97-YPB132M4，XDSF97-YPB160M4，XDSF97-YPB180M4，XDSF97-YPB200M4，XDSF97-YPB80M4，XDSF97-YPB90M4，XDSF97-YPE100M4，XDSF97-YPE112M4，XDSF97-YPE132M4，XDSF97-YPE160M4，XDSF97-YPE180M4，XDSF97-YPE200M4，XDSF97-YPE80M4，XDSF97-YPE90M4，XDSF97-YS100M4，XDSF97-YS112M4，XDSF97-YS132M4，XDSF97-YS160M4，XDSF97-YS180M4，XDSF97-YS200M4，XDSF97-YS80M4，XDSF97-YS90M4，XDSF97-YVB100M4，XDSF97-YVB112M4，XDSF97-YVB132M4，XDSF97-YVB160M4，XDSF97-YVB180M4，XDSF97-YVB200M4，XDSF97-YVB80M4，XDSF97-YVB90M4，XDSF97-YVP100M4，XDSF97-YVP112M4，XDSF97-YVP132M4，XDSF97-YVP160M4，XDSF97-YVP180M4，XDSF97-YVP200M4，XDSF97-YVP80M4，XDSF97-YVP90M4，XDSF97-YVPEJ100M4，XDSF97-YVPEJ112M4，XDSF97-YVPEJ132M4，XDSF97-YVPEJ160M4，XDSF97-YVPEJ180M4，XDSF97-YVPEJ200M4，XDSF97-YVPEJ80M4，XDSF97-YVPEJ90M4，JCSF97-Y1.1KW，JCSF97-Y1.5KW，JCSF97-Y100M4，JCSF97-Y112M4，JCSF97-Y11KW，JCSF97-Y132M4，JCSF97-Y15KW，JCSF97-Y160M4，JCSF97-Y18.5KW，JCSF97-Y180M4，JCSF97-Y2.2KW，JCSF97-Y200M4，JCSF97-Y22KW，JCSF97-Y3KW，JCSF97-Y4KW，JCSF97-Y5.5KW，JCSF97-Y7.5KW，JCSF97-Y80M4，JCSF97-Y90M4，JCSF97-YB100M4，JCSF97-YB112M4，JCSF97-YB132M4，JCSF97-YB160M4，JCSF97-YB180M4，JCSF97-YB200M4，JCSF97-YB80M4，JCSF97-YB90M4，JCSF97-YDP100M4，JCSF97-YDP112M4，JCSF97-YDP132M4，JCSF97-YDP160M4，JCSF97-YDP180M4，JCSF97-YDP200M4，JCSF97-YDP80M4，JCSF97-YDP90M4，JCSF97-YE100M4，JCSF97-YE112M4，JCSF97-YE132M4，JCSF97-YE160M4，JCSF97-YE180M4，JCSF97-YE200M4，JCSF97-YE80M4，JCSF97-YE90M4，JCSF97-YEJ100M4，JCSF97-YEJ112M4，JCSF97-YEJ132M4，JCSF97-YEJ160M4，JCSF97-YEJ180M4，JCSF97-YEJ200M4，JCSF97-YEJ80M4，JCSF97-YEJ90M4，JCSF97-YEJB100M4，JCSF97-YEJB112M4，JCSF97-YEJB132M4，JCSF97-YEJB160M4，JCSF97-YEJB180M4，JCSF97-YEJB200M4，JCSF97-YEJB80M4，JCSF97-YEJB90M4，JCSF97-YP100M4，JCSF97-YP112M4，JCSF97-YP132M4，JCSF97-YP160M4，JCSF97-YP180M4，JCSF97-YP200M4，JCSF97-YP80M4，JCSF97-YP90M4，JCSF97-YPB100M4，JCSF97-YPB112M4，JCSF97-YPB132M4，JCSF97-YPB160M4，JCSF97-YPB180M4，JCSF97-YPB200M4，JCSF97-YPB80M4，JCSF97-YPB90M4，JCSF97-YPE100M4，JCSF97-YPE112M4，JCSF97-YPE132M4，JCSF97-YPE160M4，JCSF97-YPE180M4，JCSF97-YPE200M4，JCSF97-YPE80M4，JCSF97-YPE90M4，JCSF97-YS100M4，JCSF97-YS112M4，JCSF97-YS132M4，JCSF97-YS160M4，JCSF97-YS180M4，JCSF97-YS200M4，JCSF97-YS80M4，JCSF97-YS90M4，JCSF97-YVB100M4，JCSF97-YVB112M4，JCSF97-YVB132M4，JCSF97-YVB160M4，JCSF97-YVB180M4，JCSF97-YVB200M4，JCSF97-YVB80M4，JCSF97-YVB90M4，JCSF97-YVP100M4，JCSF97-YVP112M4，JCSF97-YVP132M4，JCSF97-YVP160M4，JCSF97-YVP180M4，JCSF97-YVP200M4，JCSF97-YVP80M4，JCSF97-YVP90M4，JCSF97-YVPEJ100M4，JCSF97-YVPEJ112M4，JCSF97-YVPEJ132M4，JCSF97-YVPEJ160M4，JCSF97-YVPEJ180M4，JCSF97-YVPEJ200M4，JCSF97-YVPEJ80M4，JCSF97-YVPEJ90M4，YQSF97-Y1.1KW，YQSF97-Y1.5KW，YQSF97-Y100M4，YQSF97-Y112M4，YQSF97-Y11KW，YQSF97-Y132M4，YQSF97-Y15KW，YQSF97-Y160M4，YQSF97-Y18.5KW，YQSF97-Y180M4，YQSF97-Y2.2KW，YQSF97-Y200M4，YQSF97-Y22KW，YQSF97-Y3KW，YQSF97-Y4KW，YQSF97-Y5.5KW，YQSF97-Y7.5KW，YQSF97-Y80M4，YQSF97-Y90M4，YQSF97-YB100M4，YQSF97-YB112M4，YQSF97-YB132M4，YQSF97-YB160M4，YQSF97-YB180M4，YQSF97-YB200M4，YQSF97-YB80M4，YQSF97-YB90M4，YQSF97-YDP100M4，YQSF97-YDP112M4，YQSF97-YDP132M4，YQSF97-YDP160M4，YQSF97-YDP180M4，YQSF97-YDP200M4，YQSF97-YDP80M4，YQSF97-YDP90M4，YQSF97-YE100M4，YQSF97-YE112M4，YQSF97-YE132M4，YQSF97-YE160M4，YQSF97-YE180M4，YQSF97-YE200M4，YQSF97-YE80M4，YQSF97-YE90M4，YQSF97-YEJ100M4，YQSF97-YEJ112M4，YQSF97-YEJ132M4，YQSF97-YEJ160M4，YQSF97-YEJ180M4，YQSF97-YEJ200M4，YQSF97-YEJ80M4，YQSF97-YEJ90M4，YQSF97-YEJB100M4，YQSF97-YEJB112M4，YQSF97-YEJB132M4，YQSF97-YEJB160M4，YQSF97-YEJB180M4，YQSF97-YEJB200M4，YQSF97-YEJB80M4，YQSF97-YEJB90M4，YQSF97-YP100M4，YQSF97-YP112M4，YQSF97-YP132M4，YQSF97-YP160M4，YQSF97-YP180M4，YQSF97-YP200M4，YQSF97-YP80M4，YQSF97-YP90M4，YQSF97-YPB100M4，YQSF97-YPB112M4，YQSF97-YPB132M4，YQSF97-YPB160M4，YQSF97-YPB180M4，YQSF97-YPB200M4，YQSF97-YPB80M4，YQSF97-YPB90M4，YQSF97-YPE100M4，YQSF97-YPE112M4，YQSF97-YPE132M4，YQSF97-YPE160M4，YQSF97-YPE180M4，YQSF97-YPE200M4，YQSF97-YPE80M4，YQSF97-YPE90M4，YQSF97-YS100M4，YQSF97-YS112M4，YQSF97-YS132M4，YQSF97-YS160M4，YQSF97-YS180M4，YQSF97-YS200M4，YQSF97-YS80M4，YQSF97-YS90M4，YQSF97-YVB100M4，YQSF97-YVB112M4，YQSF97-YVB132M4，YQSF97-YVB160M4，YQSF97-YVB180M4，YQSF97-YVB200M4，YQSF97-YVB80M4，YQSF97-YVB90M4，YQSF97-YVP100M4，YQSF97-YVP112M4，YQSF97-YVP132M4，YQSF97-YVP160M4，YQSF97-YVP180M4，YQSF97-YVP200M4，YQSF97-YVP80M4，YQSF97-YVP90M4，YQSF97-YVPEJ100M4，YQSF97-YVPEJ112M4，YQSF97-YVPEJ132M4，YQSF97-YVPEJ160M4，YQSF97-YVPEJ180M4，YQSF97-YVPEJ200M4，YQSF97-YVPEJ80M4，YQSF97-YVPEJ90M4，SWF97-Y1.1KW，SWF97-Y1.5KW，SWF97-Y100M4，SWF97-Y112M4，SWF97-Y11KW，SWF97-Y132M4，SWF97-Y15KW，SWF97-Y160M4，SWF97-Y18.5KW，SWF97-Y180M4，SWF97-Y2.2KW，SWF97-Y200M4，SWF97-Y22KW，SWF97-Y3KW，SWF97-Y4KW，SWF97-Y5.5KW，SWF97-Y7.5KW，SWF97-Y80M4，SWF97-Y90M4，SWF97-YB100M4，SWF97-YB112M4，SWF97-YB132M4，SWF97-YB160M4，SWF97-YB180M4，SWF97-YB200M4，SWF97-YB80M4，SWF97-YB90M4，SWF97-YDP100M4，SWF97-YDP112M4，SWF97-YDP132M4，SWF97-YDP160M4，SWF97-YDP180M4，SWF97-YDP200M4，SWF97-YDP80M4，SWF97-YDP90M4，SWF97-YE100M4，SWF97-YE112M4，SWF97-YE132M4，SWF97-YE160M4，SWF97-YE180M4，SWF97-YE200M4，SWF97-YE80M4，SWF97-YE90M4，SWF97-YEJ100M4，SWF97-YEJ112M4，SWF97-YEJ132M4，SWF97-YEJ160M4，SWF97-YEJ180M4，SWF97-YEJ200M4，SWF97-YEJ80M4，SWF97-YEJ90M4，SWF97-YEJB100M4，SWF97-YEJB112M4，SWF97-YEJB132M4，SWF97-YEJB160M4，SWF97-YEJB180M4，SWF97-YEJB200M4，SWF97-YEJB80M4，SWF97-YEJB90M4，SWF97-YP100M4，SWF97-YP112M4，SWF97-YP132M4，SWF97-YP160M4，SWF97-YP180M4，SWF97-YP200M4，SWF97-YP80M4，SWF97-YP90M4，SWF97-YPB100M4，SWF97-YPB112M4，SWF97-YPB132M4，SWF97-YPB160M4，SWF97-YPB180M4，SWF97-YPB200M4，SWF97-YPB80M4，SWF97-YPB90M4，SWF97-YPE100M4，SWF97-YPE112M4，SWF97-YPE132M4，SWF97-YPE160M4，SWF97-YPE180M4，SWF97-YPE200M4，SWF97-YPE80M4，SWF97-YPE90M4，SWF97-YS100M4，SWF97-YS112M4，SWF97-YS132M4，SWF97-YS160M4，SWF97-YS180M4，SWF97-YS200M4，SWF97-YS80M4，SWF97-YS90M4，SWF97-YVB100M4，SWF97-YVB112M4，SWF97-YVB132M4，SWF97-YVB160M4，SWF97-YVB180M4，SWF97-YVB200M4，SWF97-YVB80M4，SWF97-YVB90M4，SWF97-YVP100M4，SWF97-YVP112M4，SWF97-YVP132M4，SWF97-YVP160M4，SWF97-YVP180M4，SWF97-YVP200M4，SWF97-YVP80M4，SWF97-YVP90M4，SWF97-YVPEJ100M4，SWF97-YVPEJ112M4，SWF97-YVPEJ132M4，SWF97-YVPEJ160M4，SWF97-YVPEJ180M4，SWF97-YVPEJ200M4，SWF97-YVPEJ80M4，SWF97-YVPEJ90M4，SF99-Y1.1KW，SF99-Y1.5KW，SF99-Y100M4，SF99-Y112M4，SF99-Y11KW，SF99-Y132M4，SF99-Y15KW，SF99-Y160M4，SF99-Y18.5KW，SF99-Y180M4，SF99-Y2.2KW，SF99-Y200M4，SF99-Y22KW，SF99-Y3KW，SF99-Y4KW，SF99-Y5.5KW，SF99-Y7.5KW，SF99-Y80M4，SF99-Y90M4，SF99-YB100M4，SF99-YB112M4，SF99-YB132M4，SF99-YB160M4，SF99-YB180M4，SF99-YB200M4，SF99-YB80M4，SF99-YB90M4，SF99-YDP100M4，SF99-YDP112M4，SF99-YDP132M4，SF99-YDP160M4，SF99-YDP180M4，SF99-YDP200M4，SF99-YDP80M4，SF99-YDP90M4，SF99-YE100M4，SF99-YE112M4，SF99-YE132M4，SF99-YE160M4，SF99-YE180M4，SF99-YE200M4，SF99-YE80M4，SF99-YE90M4，SF99-YEJ100M4，SF99-YEJ112M4，SF99-YEJ132M4，SF99-YEJ160M4，SF99-YEJ180M4，SF99-YEJ200M4，SF99-YEJ80M4，SF99-YEJ90M4，SF99-YEJB100M4，SF99-YEJB112M4，SF99-YEJB132M4，SF99-YEJB160M4，SF99-YEJB180M4，SF99-YEJB200M4，SF99-YEJB80M4，SF99-YEJB90M4，SF99-YP100M4，SF99-YP112M4，SF99-YP132M4，SF99-YP160M4，SF99-YP180M4，SF99-YP200M4，SF99-YP80M4，SF99-YP90M4，SF99-YPB100M4，SF99-YPB112M4，SF99-YPB132M4，SF99-YPB160M4，SF99-YPB180M4，SF99-YPB200M4，SF99-YPB80M4，SF99-YPB90M4，SF99-YPE100M4，SF99-YPE112M4，SF99-YPE132M4，SF99-YPE160M4，SF99-YPE180M4，SF99-YPE200M4，SF99-YPE80M4，SF99-YPE90M4，SF99-YS100M4，SF99-YS112M4，SF99-YS132M4，SF99-YS160M4，SF99-YS180M4，SF99-YS200M4，SF99-YS80M4，SF99-YS90M4，SF99-YVB100M4，SF99-YVB112M4，SF99-YVB132M4，SF99-YVB160M4，SF99-YVB180M4，SF99-YVB200M4，SF99-YVB80M4，SF99-YVB90M4，SF99-YVP100M4，SF99-YVP112M4，SF99-YVP132M4，SF99-YVP160M4，SF99-YVP180M4，SF99-YVP200M4，SF99-YVP80M4，SF99-YVP90M4，SF99-YVPEJ100M4，SF99-YVPEJ112M4，SF99-YVPEJ132M4，SF99-YVPEJ160M4，SF99-YVPEJ180M4，SF99-YVPEJ200M4，SF99-YVPEJ80M4，SF99-YVPEJ90M4。

SF99減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jiohu.cn/product/list-sfxiliejiansuji-cn.html

推薦類似型號：S99減速機
