KA159減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA159減速器選型樣本。

KA159-BVB-30KW-4P-79.75-M5-0°

KA：系列代號

159：減速機規格代號

BVB：電機

30KW：電機功率

4P：電機級數

79.75：減速機傳動比

M5：減速機安裝位置

0°：接線盒位置

KA159減速器逆止器安裝：

KA159減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

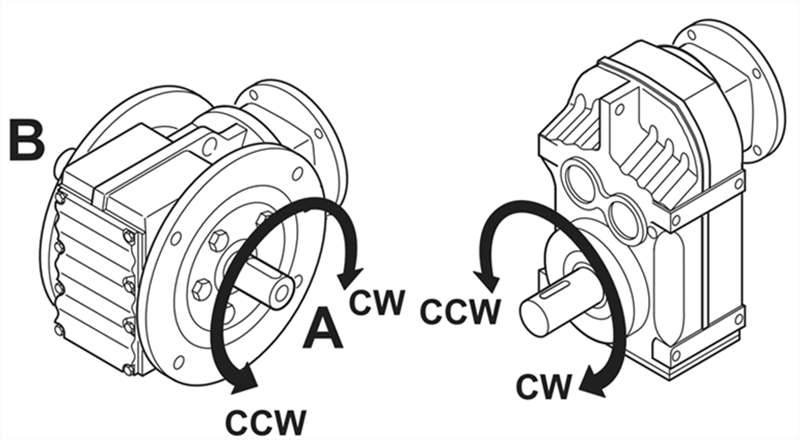

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

KA159減速器潤滑油更換：

由于KA159減速器發熱或KA159減速器油溫過高可能引起燙傷，對KA159減速器進行操作前先冷卻，KA159減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機

通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。

通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。

通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機

KA159減速器電機型號：

KWA157-Y110KWA，KWA157-Y11KWA，KWA157-Y132KWA，KWA157-Y15KWA，KWA157-Y160KWA，KWA157-Y160M4，KWA157-Y18.5KWA，KWA157-Y180M4，KWA157-Y200KWA，KWA157-Y200M4，KWA157-Y225M4，KWA157-Y22KWA，KWA157-Y250M4，KWA157-Y280M4，KWA157-Y30KWA，KWA157-Y315M4，KWA157-Y37KWA，KWA157-Y45KWA，KWA157-Y55KWA，KWA157-Y75KWA，KWA157-Y90KWA，KWA157-YB160M4，KWA157-YB180M4，KWA157-YB200M4，KWA157-YB225M4，KWA157-YB250M4，KWA157-YB280M4，KWA157-YB315M4，KWA157-YDP160M4，KWA157-YDP180M4，KWA157-YDP200M4，KWA157-YDP225M4，KWA157-YDP250M4，KWA157-YDP280M4，KWA157-YDP315M4，KWA157-YE160M4，KWA157-YE180M4，KWA157-YE200M4，KWA157-YE225M4，KWA157-YE250M4，KWA157-YE280M4，KWA157-YE315M4，KWA157-YEJ160M4，KWA157-YEJ180M4，KWA157-YEJ200M4，KWA157-YEJ225M4，KWA157-YEJ250M4，KWA157-YEJ280M4，KWA157-YEJ315M4，KWA157-YEJB160M4，KWA157-YEJB180M4，KWA157-YEJB200M4，KWA157-YEJB225M4，KWA157-YEJB250M4，KWA157-YEJB280M4，KWA157-YEJB315M4，KWA157-YP160M4，KWA157-YP180M4，KWA157-YP200M4，KWA157-YP225M4，KWA157-YP250M4，KWA157-YP280M4，KWA157-YP315M4，KWA157-YPB160M4，KWA157-YPB180M4，KWA157-YPB200M4，KWA157-YPB225M4，KWA157-YPB250M4，KWA157-YPB280M4，KWA157-YPB315M4，KWA157-YPE160M4，KWA157-YPE180M4，KWA157-YPE200M4，KWA157-YPE225M4，KWA157-YPE250M4，KWA157-YPE280M4，KWA157-YPE315M4，KWA157-YS160M4，KWA157-YS180M4，KWA157-YS200M4，KWA157-YS225M4，KWA157-YS250M4，KWA157-YS280M4，KWA157-YS315M4，KWA157-YVB160M4，KWA157-YVB180M4，KWA157-YVB200M4，KWA157-YVB225M4，KWA157-YVB250M4，KWA157-YVB280M4，KWA157-YVB315M4，KWA157-YVP160M4，KWA157-YVP180M4，KWA157-YVP200M4，KWA157-YVP225M4，KWA157-YVP250M4，KWA157-YVP280M4，KWA157-YVP315M4，KWA157-YVPEJ160M4，KWA157-YVPEJ180M4，KWA157-YVPEJ200M4，KWA157-YVPEJ225M4，KWA157-YVPEJ250M4，KWA157-YVPEJ280M4，KWA157-YVPEJ315M4，JCKA157-Y110KWA，JCKA157-Y11KWA，JCKA157-Y132KWA，JCKA157-Y15KWA，JCKA157-Y160KWA，JCKA157-Y160M4，JCKA157-Y18.5KWA，JCKA157-Y180M4，JCKA157-Y200KWA，JCKA157-Y200M4，JCKA157-Y225M4，JCKA157-Y22KWA，JCKA157-Y250M4，JCKA157-Y280M4，JCKA157-Y30KWA，JCKA157-Y315M4，JCKA157-Y37KWA，JCKA157-Y45KWA，JCKA157-Y55KWA，JCKA157-Y75KWA，JCKA157-Y90KWA，JCKA157-YB160M4，JCKA157-YB180M4，JCKA157-YB200M4，JCKA157-YB225M4，JCKA157-YB250M4，JCKA157-YB280M4，JCKA157-YB315M4，JCKA157-YDP160M4，JCKA157-YDP180M4，JCKA157-YDP200M4，JCKA157-YDP225M4，JCKA157-YDP250M4，JCKA157-YDP280M4，JCKA157-YDP315M4，JCKA157-YE160M4，JCKA157-YE180M4，JCKA157-YE200M4，JCKA157-YE225M4，JCKA157-YE250M4，JCKA157-YE280M4，JCKA157-YE315M4，JCKA157-YEJ160M4，JCKA157-YEJ180M4，JCKA157-YEJ200M4，JCKA157-YEJ225M4，JCKA157-YEJ250M4，JCKA157-YEJ280M4，JCKA157-YEJ315M4，JCKA157-YEJB160M4，JCKA157-YEJB180M4，JCKA157-YEJB200M4，JCKA157-YEJB225M4，JCKA157-YEJB250M4，JCKA157-YEJB280M4，JCKA157-YEJB315M4，JCKA157-YP160M4，JCKA157-YP180M4，JCKA157-YP200M4，JCKA157-YP225M4，JCKA157-YP250M4，JCKA157-YP280M4，JCKA157-YP315M4，JCKA157-YPB160M4，JCKA157-YPB180M4，JCKA157-YPB200M4，JCKA157-YPB225M4，JCKA157-YPB250M4，JCKA157-YPB280M4，JCKA157-YPB315M4，JCKA157-YPE160M4，JCKA157-YPE180M4，JCKA157-YPE200M4，JCKA157-YPE225M4，JCKA157-YPE250M4，JCKA157-YPE280M4，JCKA157-YPE315M4，JCKA157-YS160M4，JCKA157-YS180M4，JCKA157-YS200M4，JCKA157-YS225M4，JCKA157-YS250M4，JCKA157-YS280M4，JCKA157-YS315M4，JCKA157-YVB160M4，JCKA157-YVB180M4，JCKA157-YVB200M4，JCKA157-YVB225M4，JCKA157-YVB250M4，JCKA157-YVB280M4，JCKA157-YVB315M4，JCKA157-YVP160M4，JCKA157-YVP180M4，JCKA157-YVP200M4，JCKA157-YVP225M4，JCKA157-YVP250M4，JCKA157-YVP280M4，JCKA157-YVP315M4，JCKA157-YVPEJ160M4，JCKA157-YVPEJ180M4，JCKA157-YVPEJ200M4，JCKA157-YVPEJ225M4，JCKA157-YVPEJ250M4，JCKA157-YVPEJ280M4，JCKA157-YVPEJ315M4，YQKA157-Y110KWA，YQKA157-Y11KWA，YQKA157-Y132KWA，YQKA157-Y15KWA，YQKA157-Y160KWA，YQKA157-Y160M4，YQKA157-Y18.5KWA，YQKA157-Y180M4，YQKA157-Y200KWA，YQKA157-Y200M4，YQKA157-Y225M4，YQKA157-Y22KWA，YQKA157-Y250M4，YQKA157-Y280M4，YQKA157-Y30KWA，YQKA157-Y315M4，YQKA157-Y37KWA，YQKA157-Y45KWA，YQKA157-Y55KWA，YQKA157-Y75KWA，YQKA157-Y90KWA，YQKA157-YB160M4，YQKA157-YB180M4，YQKA157-YB200M4，YQKA157-YB225M4，YQKA157-YB250M4，YQKA157-YB280M4，YQKA157-YB315M4，YQKA157-YDP160M4，YQKA157-YDP180M4，YQKA157-YDP200M4，YQKA157-YDP225M4，YQKA157-YDP250M4，YQKA157-YDP280M4，YQKA157-YDP315M4，YQKA157-YE160M4，YQKA157-YE180M4，YQKA157-YE200M4，YQKA157-YE225M4，YQKA157-YE250M4，YQKA157-YE280M4，YQKA157-YE315M4，YQKA157-YEJ160M4，YQKA157-YEJ180M4，YQKA157-YEJ200M4，YQKA157-YEJ225M4，YQKA157-YEJ250M4，YQKA157-YEJ280M4，YQKA157-YEJ315M4，YQKA157-YEJB160M4，YQKA157-YEJB180M4，YQKA157-YEJB200M4，YQKA157-YEJB225M4，YQKA157-YEJB250M4，YQKA157-YEJB280M4，YQKA157-YEJB315M4，YQKA157-YP160M4，YQKA157-YP180M4，YQKA157-YP200M4，YQKA157-YP225M4，YQKA157-YP250M4，YQKA157-YP280M4，YQKA157-YP315M4，YQKA157-YPB160M4，YQKA157-YPB180M4，YQKA157-YPB200M4，YQKA157-YPB225M4，YQKA157-YPB250M4，YQKA157-YPB280M4，YQKA157-YPB315M4，YQKA157-YPE160M4，YQKA157-YPE180M4，YQKA157-YPE200M4，YQKA157-YPE225M4，YQKA157-YPE250M4，YQKA157-YPE280M4，YQKA157-YPE315M4，YQKA157-YS160M4，YQKA157-YS180M4，YQKA157-YS200M4，YQKA157-YS225M4，YQKA157-YS250M4，YQKA157-YS280M4，YQKA157-YS315M4，YQKA157-YVB160M4，YQKA157-YVB180M4，YQKA157-YVB200M4，YQKA157-YVB225M4，YQKA157-YVB250M4，YQKA157-YVB280M4，YQKA157-YVB315M4，YQKA157-YVP160M4，YQKA157-YVP180M4，YQKA157-YVP200M4，YQKA157-YVP225M4，YQKA157-YVP250M4，YQKA157-YVP280M4，YQKA157-YVP315M4，YQKA157-YVPEJ160M4，YQKA157-YVPEJ180M4，YQKA157-YVPEJ200M4，YQKA157-YVPEJ225M4，YQKA157-YVPEJ250M4，YQKA157-YVPEJ280M4，YQKA157-YVPEJ315M4，XDKA157-Y110KWA，XDKA157-Y11KWA，XDKA157-Y132KWA，XDKA157-Y15KWA，XDKA157-Y160KWA，XDKA157-Y160M4，XDKA157-Y18.5KWA，XDKA157-Y180M4，XDKA157-Y200KWA，XDKA157-Y200M4，XDKA157-Y225M4，XDKA157-Y22KWA，XDKA157-Y250M4，XDKA157-Y280M4，XDKA157-Y30KWA，XDKA157-Y315M4，XDKA157-Y37KWA，XDKA157-Y45KWA，XDKA157-Y55KWA，XDKA157-Y75KWA，XDKA157-Y90KWA，XDKA157-YB160M4，XDKA157-YB180M4，XDKA157-YB200M4，XDKA157-YB225M4，XDKA157-YB250M4，XDKA157-YB280M4，XDKA157-YB315M4，XDKA157-YDP160M4，XDKA157-YDP180M4，XDKA157-YDP200M4，XDKA157-YDP225M4，XDKA157-YDP250M4，XDKA157-YDP280M4，XDKA157-YDP315M4，XDKA157-YE160M4，XDKA157-YE180M4，XDKA157-YE200M4，XDKA157-YE225M4，XDKA157-YE250M4，XDKA157-YE280M4，XDKA157-YE315M4，XDKA157-YEJ160M4，XDKA157-YEJ180M4，XDKA157-YEJ200M4，XDKA157-YEJ225M4，XDKA157-YEJ250M4，XDKA157-YEJ280M4，XDKA157-YEJ315M4，XDKA157-YEJB160M4，XDKA157-YEJB180M4，XDKA157-YEJB200M4，XDKA157-YEJB225M4，XDKA157-YEJB250M4，XDKA157-YEJB280M4，XDKA157-YEJB315M4，XDKA157-YP160M4，XDKA157-YP180M4，XDKA157-YP200M4，XDKA157-YP225M4，XDKA157-YP250M4，XDKA157-YP280M4，XDKA157-YP315M4，XDKA157-YPB160M4，XDKA157-YPB180M4，XDKA157-YPB200M4，XDKA157-YPB225M4，XDKA157-YPB250M4，XDKA157-YPB280M4，XDKA157-YPB315M4，XDKA157-YPE160M4，XDKA157-YPE180M4，XDKA157-YPE200M4，XDKA157-YPE225M4，XDKA157-YPE250M4，XDKA157-YPE280M4，XDKA157-YPE315M4，XDKA157-YS160M4，XDKA157-YS180M4，XDKA157-YS200M4，XDKA157-YS225M4，XDKA157-YS250M4，XDKA157-YS280M4，XDKA157-YS315M4，XDKA157-YVB160M4，XDKA157-YVB180M4，XDKA157-YVB200M4，XDKA157-YVB225M4，XDKA157-YVB250M4，XDKA157-YVB280M4，XDKA157-YVB315M4，XDKA157-YVP160M4，XDKA157-YVP180M4，XDKA157-YVP200M4，XDKA157-YVP225M4，XDKA157-YVP250M4，XDKA157-YVP280M4，XDKA157-YVP315M4，XDKA157-YVPEJ160M4，XDKA157-YVPEJ180M4，XDKA157-YVPEJ200M4，XDKA157-YVPEJ225M4，XDKA157-YVPEJ250M4，XDKA157-YVPEJ280M4，XDKA157-YVPEJ315M4，KA159-Y110KWA，KA159-Y11KWA，KA159-Y132KWA，KA159-Y15KWA，KA159-Y160KWA，KA159-Y160M4，KA159-Y18.5KWA，KA159-Y180M4，KA159-Y200KWA，KA159-Y200M4，KA159-Y225M4，KA159-Y22KWA，KA159-Y250M4，KA159-Y280M4，KA159-Y30KWA，KA159-Y315M4，KA159-Y37KWA，KA159-Y45KWA，KA159-Y55KWA，KA159-Y75KWA，KA159-Y90KWA，KA159-YB160M4，KA159-YB180M4，KA159-YB200M4，KA159-YB225M4，KA159-YB250M4，KA159-YB280M4，KA159-YB315M4，KA159-YDP160M4，KA159-YDP180M4，KA159-YDP200M4，KA159-YDP225M4，KA159-YDP250M4，KA159-YDP280M4，KA159-YDP315M4，KA159-YE160M4，KA159-YE180M4，KA159-YE200M4，KA159-YE225M4，KA159-YE250M4，KA159-YE280M4，KA159-YE315M4，KA159-YEJ160M4，KA159-YEJ180M4，KA159-YEJ200M4，KA159-YEJ225M4，KA159-YEJ250M4，KA159-YEJ280M4，KA159-YEJ315M4，KA159-YEJB160M4，KA159-YEJB180M4，KA159-YEJB200M4，KA159-YEJB225M4，KA159-YEJB250M4，KA159-YEJB280M4，KA159-YEJB315M4，KA159-YP160M4，KA159-YP180M4，KA159-YP200M4，KA159-YP225M4，KA159-YP250M4，KA159-YP280M4，KA159-YP315M4，KA159-YPB160M4，KA159-YPB180M4，KA159-YPB200M4，KA159-YPB225M4，KA159-YPB250M4，KA159-YPB280M4，KA159-YPB315M4，KA159-YPE160M4，KA159-YPE180M4，KA159-YPE200M4，KA159-YPE225M4，KA159-YPE250M4，KA159-YPE280M4，KA159-YPE315M4，KA159-YS160M4，KA159-YS180M4，KA159-YS200M4，KA159-YS225M4，KA159-YS250M4，KA159-YS280M4，KA159-YS315M4，KA159-YVB160M4，KA159-YVB180M4，KA159-YVB200M4，KA159-YVB225M4，KA159-YVB250M4，KA159-YVB280M4，KA159-YVB315M4，KA159-YVP160M4，KA159-YVP180M4，KA159-YVP200M4，KA159-YVP225M4，KA159-YVP250M4，KA159-YVP280M4，KA159-YVP315M4，KA159-YVPEJ160M4，KA159-YVPEJ180M4，KA159-YVPEJ200M4，KA159-YVPEJ225M4，KA159-YVPEJ250M4，KA159-YVPEJ280M4，KA159-YVPEJ315M4，KA157SF80，KA157SF90，KA157SF100，KA157SF112，KA157SF115，KA157SF140，KA157SF160，KA157SF190。

KA159減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jiohu.cn/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K159減速機
