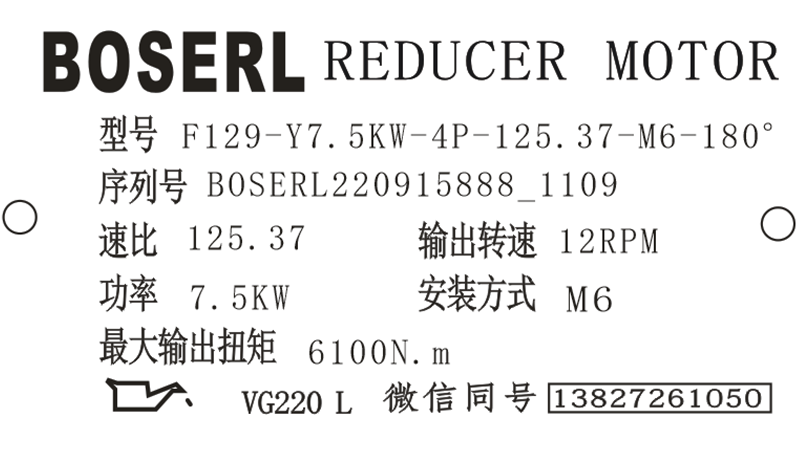

F129減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F129減速器選型樣本。

F129-Y7.5KW-4P-125.37-M6-180°

F：系列代號

129：減速機規格代號

Y：電機

7.55KW：電機功率

4P：電機級數

125.37：減速機傳動比

M6：減速機安裝位置

180°：接線盒位置

F129減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

F129減速器安裝所需工具以及材料：

F129減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。F129減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將F129減速器的安裝位置改變?yōu)镸5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將F129減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在F129減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對F129減速器箱體進行連接接地。F系列減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（F129減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

F129減速器故障售后服務統籌：

F129減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“F129減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“F129減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；齒輪減速電機

F129減速器潤滑油泄露：F129減速器密封面密封性能不良，擰緊F129減速器蓋上的螺釘并觀察F129減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；F129減速器透氣閥失效，給F129減速器透氣參見“F129減速器說明書的安裝位置”章節。

F129減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“F129減速器說明書的檢查/維護”章節；F129減速器安裝位置錯誤，正確安裝透氣閥參見“F129減速器說明書的安裝位置”章節，調節油位參見“F129減速器說明書的檢查/維護”章節。

F129減速器電機或輸入軸轉動，而輸出軸不轉：F129減速器中的軸輪轂聯接斷裂，將F129減速器或減速電機送來我司修理。

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對F129減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。平行軸斜齒輪減速機

F129減速器型號：

XDF127-Y11KW，XDF127-Y132M4，XDF127-Y15KW，XDF127-Y160M4，XDF127-Y18.5KW，XDF127-Y180M4，XDF127-Y200M4，XDF127-Y225M4，XDF127-Y22KW，XDF127-Y250M4，XDF127-Y280M4，XDF127-Y30KW，XDF127-Y37KW，XDF127-Y45KW，XDF127-Y55KW，XDF127-Y7.5KW，XDF127-Y75KW，XDF127-Y90KW，XDF127-YB132M4，XDF127-YB160M4，XDF127-YB180M4，XDF127-YB200M4，XDF127-YB225M4，XDF127-YB250M4，XDF127-YB280M4，XDF127-YDP132M4，XDF127-YDP160M4，XDF127-YDP180M4，XDF127-YDP200M4，XDF127-YDP225M4，XDF127-YDP250M4，XDF127-YDP280M4，XDF127-YE132M4，XDF127-YE160M4，XDF127-YE180M4，XDF127-YE200M4，XDF127-YE225M4，XDF127-YE250M4，XDF127-YE280M4，XDF127-YEJ132M4，XDF127-YEJ160M4，XDF127-YEJ180M4，XDF127-YEJ200M4，XDF127-YEJ225M4，XDF127-YEJ250M4，XDF127-YEJ280M4，XDF127-YEJB132M4，XDF127-YEJB160M4，XDF127-YEJB180M4，XDF127-YEJB200M4，XDF127-YEJB225M4，XDF127-YEJB250M4，XDF127-YEJB280M4，XDF127-YP132M4，XDF127-YP160M4，XDF127-YP180M4，XDF127-YP200M4，XDF127-YP225M4，XDF127-YP250M4，XDF127-YP280M4，XDF127-YPB132M4，XDF127-YPB160M4，XDF127-YPB180M4，XDF127-YPB200M4，XDF127-YPB225M4，XDF127-YPB250M4，XDF127-YPB280M4，XDF127-YPE132M4，XDF127-YPE160M4，XDF127-YPE180M4，XDF127-YPE200M4，XDF127-YPE225M4，XDF127-YPE250M4，XDF127-YPE280M4，XDF127-YS132M4，XDF127-YS160M4，XDF127-YS180M4，XDF127-YS200M4，XDF127-YS225M4，XDF127-YS250M4，XDF127-YS280M4，XDF127-YVB132M4，XDF127-YVB160M4，XDF127-YVB180M4，XDF127-YVB200M4，XDF127-YVB225M4，XDF127-YVB250M4，XDF127-YVB280M4，XDF127-YVP132M4，XDF127-YVP160M4，XDF127-YVP180M4，XDF127-YVP200M4，XDF127-YVP225M4，XDF127-YVP250M4，XDF127-YVP280M4，XDF127-YVPEJ132M4，XDF127-YVPEJ160M4，XDF127-YVPEJ180M4，XDF127-YVPEJ200M4，XDF127-YVPEJ225M4，XDF127-YVPEJ250M4，XDF127-YVPEJ280M4，JCF127-Y11KW，JCF127-Y132M4，JCF127-Y15KW，JCF127-Y160M4，JCF127-Y18.5KW，JCF127-Y180M4，JCF127-Y200M4，JCF127-Y225M4，JCF127-Y22KW，JCF127-Y250M4，JCF127-Y280M4，JCF127-Y30KW，JCF127-Y37KW，JCF127-Y45KW，JCF127-Y55KW，JCF127-Y7.5KW，JCF127-Y75KW，JCF127-Y90KW，JCF127-YB132M4，JCF127-YB160M4，JCF127-YB180M4，JCF127-YB200M4，JCF127-YB225M4，JCF127-YB250M4，JCF127-YB280M4，JCF127-YDP132M4，JCF127-YDP160M4，JCF127-YDP180M4，JCF127-YDP200M4，JCF127-YDP225M4，JCF127-YDP250M4，JCF127-YDP280M4，JCF127-YE132M4，JCF127-YE160M4，JCF127-YE180M4，JCF127-YE200M4，JCF127-YE225M4，JCF127-YE250M4，JCF127-YE280M4，JCF127-YEJ132M4，JCF127-YEJ160M4，JCF127-YEJ180M4，JCF127-YEJ200M4，JCF127-YEJ225M4，JCF127-YEJ250M4，JCF127-YEJ280M4，JCF127-YEJB132M4，JCF127-YEJB160M4，JCF127-YEJB180M4，JCF127-YEJB200M4，JCF127-YEJB225M4，JCF127-YEJB250M4，JCF127-YEJB280M4，JCF127-YP132M4，JCF127-YP160M4，JCF127-YP180M4，JCF127-YP200M4，JCF127-YP225M4，JCF127-YP250M4，JCF127-YP280M4，JCF127-YPB132M4，JCF127-YPB160M4，JCF127-YPB180M4，JCF127-YPB200M4，JCF127-YPB225M4，JCF127-YPB250M4，JCF127-YPB280M4，JCF127-YPE132M4，JCF127-YPE160M4，JCF127-YPE180M4，JCF127-YPE200M4，JCF127-YPE225M4，JCF127-YPE250M4，JCF127-YPE280M4，JCF127-YS132M4，JCF127-YS160M4，JCF127-YS180M4，JCF127-YS200M4，JCF127-YS225M4，JCF127-YS250M4，JCF127-YS280M4，JCF127-YVB132M4，JCF127-YVB160M4，JCF127-YVB180M4，JCF127-YVB200M4，JCF127-YVB225M4，JCF127-YVB250M4，JCF127-YVB280M4，JCF127-YVP132M4，JCF127-YVP160M4，JCF127-YVP180M4，JCF127-YVP200M4，JCF127-YVP225M4，JCF127-YVP250M4，JCF127-YVP280M4，JCF127-YVPEJ132M4，JCF127-YVPEJ160M4，JCF127-YVPEJ180M4，JCF127-YVPEJ200M4，JCF127-YVPEJ225M4，JCF127-YVPEJ250M4，JCF127-YVPEJ280M4，F(xiàn)W127-Y11KW，F(xiàn)W127-Y132M4，F(xiàn)W127-Y15KW，F(xiàn)W127-Y160M4，F(xiàn)W127-Y18.5KW，F(xiàn)W127-Y180M4，F(xiàn)W127-Y200M4，F(xiàn)W127-Y225M4，F(xiàn)W127-Y22KW，F(xiàn)W127-Y250M4，F(xiàn)W127-Y280M4，F(xiàn)W127-Y30KW，F(xiàn)W127-Y37KW，F(xiàn)W127-Y45KW，F(xiàn)W127-Y55KW，F(xiàn)W127-Y7.5KW，F(xiàn)W127-Y75KW，F(xiàn)W127-Y90KW，F(xiàn)W127-YB132M4，F(xiàn)W127-YB160M4，F(xiàn)W127-YB180M4，F(xiàn)W127-YB200M4，F(xiàn)W127-YB225M4，F(xiàn)W127-YB250M4，F(xiàn)W127-YB280M4，F(xiàn)W127-YDP132M4，F(xiàn)W127-YDP160M4，F(xiàn)W127-YDP180M4，F(xiàn)W127-YDP200M4，F(xiàn)W127-YDP225M4，F(xiàn)W127-YDP250M4，F(xiàn)W127-YDP280M4，F(xiàn)W127-YE132M4，F(xiàn)W127-YE160M4，F(xiàn)W127-YE180M4，F(xiàn)W127-YE200M4，F(xiàn)W127-YE225M4，F(xiàn)W127-YE250M4，F(xiàn)W127-YE280M4，F(xiàn)W127-YEJ132M4，F(xiàn)W127-YEJ160M4，F(xiàn)W127-YEJ180M4，F(xiàn)W127-YEJ200M4，F(xiàn)W127-YEJ225M4，F(xiàn)W127-YEJ250M4，F(xiàn)W127-YEJ280M4，F(xiàn)W127-YEJB132M4，F(xiàn)W127-YEJB160M4，F(xiàn)W127-YEJB180M4，F(xiàn)W127-YEJB200M4，F(xiàn)W127-YEJB225M4，F(xiàn)W127-YEJB250M4，F(xiàn)W127-YEJB280M4，F(xiàn)W127-YP132M4，F(xiàn)W127-YP160M4，F(xiàn)W127-YP180M4，F(xiàn)W127-YP200M4，F(xiàn)W127-YP225M4，F(xiàn)W127-YP250M4，F(xiàn)W127-YP280M4，F(xiàn)W127-YPB132M4，F(xiàn)W127-YPB160M4，F(xiàn)W127-YPB180M4，F(xiàn)W127-YPB200M4，F(xiàn)W127-YPB225M4，F(xiàn)W127-YPB250M4，F(xiàn)W127-YPB280M4，F(xiàn)W127-YPE132M4，F(xiàn)W127-YPE160M4，F(xiàn)W127-YPE180M4，F(xiàn)W127-YPE200M4，F(xiàn)W127-YPE225M4，F(xiàn)W127-YPE250M4，F(xiàn)W127-YPE280M4，F(xiàn)W127-YS132M4，F(xiàn)W127-YS160M4，F(xiàn)W127-YS180M4，F(xiàn)W127-YS200M4，F(xiàn)W127-YS225M4，F(xiàn)W127-YS250M4，F(xiàn)W127-YS280M4，F(xiàn)W127-YVB132M4，F(xiàn)W127-YVB160M4，F(xiàn)W127-YVB180M4，F(xiàn)W127-YVB200M4，F(xiàn)W127-YVB225M4，F(xiàn)W127-YVB250M4，F(xiàn)W127-YVB280M4，F(xiàn)W127-YVP132M4，F(xiàn)W127-YVP160M4，F(xiàn)W127-YVP180M4，F(xiàn)W127-YVP200M4，F(xiàn)W127-YVP225M4，F(xiàn)W127-YVP250M4，F(xiàn)W127-YVP280M4，F(xiàn)W127-YVPEJ132M4，F(xiàn)W127-YVPEJ160M4，F(xiàn)W127-YVPEJ180M4，F(xiàn)W127-YVPEJ200M4，F(xiàn)W127-YVPEJ225M4，F(xiàn)W127-YVPEJ250M4，F(xiàn)W127-YVPEJ280M4，YQF127-Y11KW，YQF127-Y132M4，YQF127-Y15KW，YQF127-Y160M4，YQF127-Y18.5KW，YQF127-Y180M4，YQF127-Y200M4，YQF127-Y225M4，YQF127-Y22KW，YQF127-Y250M4，YQF127-Y280M4，YQF127-Y30KW，YQF127-Y37KW，YQF127-Y45KW，YQF127-Y55KW，YQF127-Y7.5KW，YQF127-Y75KW，YQF127-Y90KW，YQF127-YB132M4，YQF127-YB160M4，YQF127-YB180M4，YQF127-YB200M4，YQF127-YB225M4，YQF127-YB250M4，YQF127-YB280M4，YQF127-YDP132M4，YQF127-YDP160M4，YQF127-YDP180M4，YQF127-YDP200M4，YQF127-YDP225M4，YQF127-YDP250M4，YQF127-YDP280M4，YQF127-YE132M4，YQF127-YE160M4，YQF127-YE180M4，YQF127-YE200M4，YQF127-YE225M4，YQF127-YE250M4，YQF127-YE280M4，YQF127-YEJ132M4，YQF127-YEJ160M4，YQF127-YEJ180M4，YQF127-YEJ200M4，YQF127-YEJ225M4，YQF127-YEJ250M4，YQF127-YEJ280M4，YQF127-YEJB132M4，YQF127-YEJB160M4，YQF127-YEJB180M4，YQF127-YEJB200M4，YQF127-YEJB225M4，YQF127-YEJB250M4，YQF127-YEJB280M4，YQF127-YP132M4，YQF127-YP160M4，YQF127-YP180M4，YQF127-YP200M4，YQF127-YP225M4，YQF127-YP250M4，YQF127-YP280M4，YQF127-YPB132M4，YQF127-YPB160M4，YQF127-YPB180M4，YQF127-YPB200M4，YQF127-YPB225M4，YQF127-YPB250M4，YQF127-YPB280M4，YQF127-YPE132M4，YQF127-YPE160M4，YQF127-YPE180M4，YQF127-YPE200M4，YQF127-YPE225M4，YQF127-YPE250M4，YQF127-YPE280M4，YQF127-YS132M4，YQF127-YS160M4，YQF127-YS180M4，YQF127-YS200M4，YQF127-YS225M4，YQF127-YS250M4，YQF127-YS280M4，YQF127-YVB132M4，YQF127-YVB160M4，YQF127-YVB180M4，YQF127-YVB200M4，YQF127-YVB225M4，YQF127-YVB250M4，YQF127-YVB280M4，YQF127-YVP132M4，YQF127-YVP160M4，YQF127-YVP180M4，YQF127-YVP200M4，YQF127-YVP225M4，YQF127-YVP250M4，YQF127-YVP280M4，YQF127-YVPEJ132M4，YQF127-YVPEJ160M4，YQF127-YVPEJ180M4，YQF127-YVPEJ200M4，YQF127-YVPEJ225M4，YQF127-YVPEJ250M4，YQF127-YVPEJ280M4，F(xiàn)129-Y11KW，F(xiàn)129-Y132M4，F(xiàn)129-Y15KW，F(xiàn)129-Y160M4，F(xiàn)129-Y18.5KW，F(xiàn)129-Y180M4，F(xiàn)129-Y200M4，F(xiàn)129-Y225M4，F(xiàn)129-Y22KW，F(xiàn)129-Y250M4，F(xiàn)129-Y280M4，F(xiàn)129-Y30KW，F(xiàn)129-Y37KW，F(xiàn)129-Y45KW，F(xiàn)129-Y55KW，F(xiàn)129-Y7.5KW，F(xiàn)129-Y75KW，F(xiàn)129-Y90KW，F(xiàn)129-YB132M4，F(xiàn)129-YB160M4，F(xiàn)129-YB180M4，F(xiàn)129-YB200M4，F(xiàn)129-YB225M4，F(xiàn)129-YB250M4，F(xiàn)129-YB280M4，F(xiàn)129-YDP132M4，F(xiàn)129-YDP160M4，F(xiàn)129-YDP180M4，F(xiàn)129-YDP200M4，F(xiàn)129-YDP225M4，F(xiàn)129-YDP250M4，F(xiàn)129-YDP280M4，F(xiàn)129-YE132M4，F(xiàn)129-YE160M4，F(xiàn)129-YE180M4，F(xiàn)129-YE200M4，F(xiàn)129-YE225M4，F(xiàn)129-YE250M4，F(xiàn)129-YE280M4，F(xiàn)129-YEJ132M4，F(xiàn)129-YEJ160M4，F(xiàn)129-YEJ180M4，F(xiàn)129-YEJ200M4，F(xiàn)129-YEJ225M4，F(xiàn)129-YEJ250M4，F(xiàn)129-YEJ280M4，F(xiàn)129-YEJB132M4，F(xiàn)129-YEJB160M4，F(xiàn)129-YEJB180M4，F(xiàn)129-YEJB200M4，F(xiàn)129-YEJB225M4，F(xiàn)129-YEJB250M4，F(xiàn)129-YEJB280M4，F(xiàn)129-YP132M4，F(xiàn)129-YP160M4，F(xiàn)129-YP180M4，F(xiàn)129-YP200M4，F(xiàn)129-YP225M4，F(xiàn)129-YP250M4，F(xiàn)129-YP280M4，F(xiàn)129-YPB132M4，F(xiàn)129-YPB160M4，F(xiàn)129-YPB180M4，F(xiàn)129-YPB200M4，F(xiàn)129-YPB225M4，F(xiàn)129-YPB250M4，F(xiàn)129-YPB280M4，F(xiàn)129-YPE132M4，F(xiàn)129-YPE160M4，F(xiàn)129-YPE180M4，F(xiàn)129-YPE200M4，F(xiàn)129-YPE225M4，F(xiàn)129-YPE250M4，F(xiàn)129-YPE280M4，F(xiàn)129-YS132M4，F(xiàn)129-YS160M4，F(xiàn)129-YS180M4，F(xiàn)129-YS200M4，F(xiàn)129-YS225M4，F(xiàn)129-YS250M4，F(xiàn)129-YS280M4，F(xiàn)129-YVB132M4，F(xiàn)129-YVB160M4，F(xiàn)129-YVB180M4，F(xiàn)129-YVB200M4，F(xiàn)129-YVB225M4，F(xiàn)129-YVB250M4，F(xiàn)129-YVB280M4，F(xiàn)129-YVP132M4，F(xiàn)129-YVP160M4，F(xiàn)129-YVP180M4，F(xiàn)129-YVP200M4，F(xiàn)129-YVP225M4，F(xiàn)129-YVP250M4，F(xiàn)129-YVP280M4，F(xiàn)129-YVPEJ132M4，F(xiàn)129-YVPEJ160M4，F(xiàn)129-YVPEJ180M4，F(xiàn)129-YVPEJ200M4，F(xiàn)129-YVPEJ225M4，F(xiàn)129-YVPEJ250M4，F(xiàn)129-YVPEJ280M4，F(xiàn)127SF80，F(xiàn)127SF90，F(xiàn)127SF100，F(xiàn)127SF112，F(xiàn)127SF115，F(xiàn)127SF140，F(xiàn)127SF160，F(xiàn)127SF190。

F129減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jiohu.cn/product/list-fxiliejiansuji-cn.html

推薦類似型號：F129減速機
